DESCRIPTION
The Rixen Hydronic Macs with S-3 Diesel or Furnace Kit is an efficient heating system capable of providing up to 17,000 BTU’s of heat, while offering on demand continuous hot water. This Kit easily integrates into your vehicles current coolant system and can even provide less engine wear due
Patent Pending
SPECIFICATIONS:
- Service life - 3,000 hr
- Heating Performance - 1.3 to 5.0 kw
- Voltage - 12v
- Electric power consumption with WP* and without WP*
- With WP* - 50 watts
- Without WP* - 32 watts
- Fuel consumption – 0.15 gal/hr
- Operating Temperatures - -40° to 176°
- Furnace Weight – 4.4 lbs
- Furnace Dimensions – 8.4L x 3.5W – 5.66H
*water pump

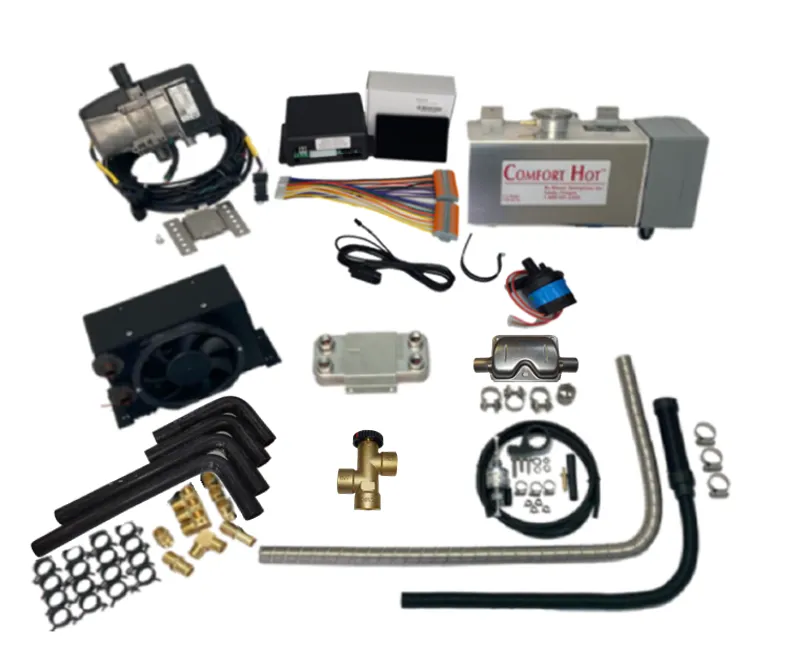

| Qty | SKU | Part |
| 1 | F12-151 | S3 Hydronic D5E CS 12V (Diesel), modified, Furnace only
|
| 1 | E12-149 | S3 Bolt for Mounting Bracket HYD |
| 1 | E12-150 | S3 Mounting Bracket HYD |
| 1 | P11-400 B | Water pump BWO 355, 12V |
| 1 | P11-401 | Mounting clamp for Rixen 355 water pump |
| 1 | E12-160 | S3 CS Eberspaecher customized Harness-Hydronic |
| 1 | E22-120 | Fuel Pump Mounting Bracket D2-D4-D5 |
| 1 | X11-105 | S3, 20mm Intake Silencer |
| 3 ft | X11-110 | 24mm Exhaust flex pipe,D5/D4/Airtronic per ft. |
| 1 | X11-111 | EXHAUST MUFFLER 24MM |
| 1 | X11-114 | 24mm Exhaust End Cap |
| 3 | X11-113 | 24mm Exhaust Clamp |
| 1 | M11-300 | MCS7 S3 POWER BOX COMPLETE w/WIFI, Altimeter, Sensor, and Harness |
| 1 | M11-308 |
MCS7 BLACK Frame Assembly 5.5" Touchscreen Remote With Heating Options |
| 1 | C11-110 | 2 Gal Comfort Hot w/Fill Cap 120 Volt-w/On-Off relay, SN# CH-400
|
| 1 | P13-200A | Heat Exchanger, Double Wall Plate |
| 1 | P13-201 | Bracket, DW Heat Exchanger |
| 1 | P12-101 | Mixing Valve |
| 1 | A11-100 | 12-Volt Air Handler High Output 1.2 amps
|
| 1 | P15-202 | 1/4" barb to 1/8" barb - brass reducer (one piece) |
| 3 | P15-121 | 1/4" Gear Hose Clamp |
| 8 ft | P15-100 | 1/8" Fuel Hose per ft. |
| 4 | P15-102 | 1/8" Fuel Hose Spring Clamp |
| 4 | P14-103 | 3/4" Molded Rubber 90° |
| 16 | P14-101 | 3/4" Spring Clamp |
| 3 | P14-102 | 3/4" Hose Clamps-Worm Drive |
| 4 | P22-102 | 1/2" MPT to 3/4" Barb 90° |
| 4 | P23-100 | 3/4" Hose Splice-straight |
| 2 | P22-100 |
1/2" MPT to 3/4" Barb |
